Signature Custom Entry Door
A made-to-drawing aluminum entry door. Panel layout, machining, glazing apertures and hardware positions are set from your elevation, so the front door can be detailed as a designed element rather than chosen from a stock range.
Configure your unit, then request a quote — we price it and reply, usually within one business day.
Every unit is made to the opening. Sizes confirmed at quotation.
No surcharge for any of these European hardware brands.
No price is shown because every unit is made to order. You will get a written quote for exactly this configuration.
10-year warranty · 20-year transferable upgrade available
Questions before you order
Will these pass a Florida HVHZ inspection?
This model is not covered by a Miami-Dade Notice of Acceptance, and we do not present it as if it were. We hold active NOAs on hurricane-zone systems — casement, fixed, awning, sliding glass door and storefront — and will tell you which one fits your opening if your job is in HVHZ. We do not claim an impact rating on a product that has not been tested for one; that is exactly what fails an inspection.
Do I get stamped drawings and the approval number before I order?
Yes — with the quotation, not after the order. Shop drawings carry a Florida-licensed engineer of record’s seal, and if the system holds a NOA, the exact number covering your opening is issued in writing at that same point. A supplier who only produces drawings once you are committed has moved their risk onto your schedule; here the paperwork arrives before the decision, not after it.
What happens if a unit arrives wrong — who pays for the delay?
We do. If a unit does not match your approved drawings, or has a manufacturing defect, we replace or repair it at no cost to you — send the order number and photographs and we start it the same day. The honest constraint worth knowing: a replacement is manufactured and shipped like any other order, so the realistic timeline is production plus freight, not days. That is the strongest argument for ordering a small contingency on a large project.
Can you meet a 9-week schedule, or is that best-case?
It is the figure we confirm in writing before deposit, against a real production schedule — not a best-case number used to close the sale. 9–10 weeks door to door already includes production, ocean freight, customs and final delivery in one figure. That said: non-standard sizes, special finishes and large combinations do take longer in production, and we say so at quotation, not after you have already paid a deposit.
Who holds the warranty — you, or someone overseas?
We do. One company on the contract, one warranty, one point of contact — you deal with NEXWD from the quotation through to a claim years later, and there is no second party on the other side of the world for us to hand you off to. Ten years standard on frame, hardware and screens; an optional 20-year upgrade on glass, transferable without proration. Ask this question of every supplier you are comparing — the answer tells you more than any brochure.
Do you provide CAD/BIM for my submittal?
Yes, free, and at quotation — drawn from our own production drawings, not a generic template, and not gated behind an account or a minimum order. NFRC data, size-versus-pressure tables and section details are included.
Overview
A made-to-drawing aluminium entry door, hinged rather than pivoted, offered as a library of around eighteen worked designs that are all treated as starting points — the panel layout, surface pattern, glazing apertures, cladding and hardware positions are set from the elevation rather than picked from a stock range. The designs span heavy fluted and grid-patterned panels, woodgrain faces, carved classical work and glazed lites with sidelights, but the construction underneath them is common.
Where the pivot door is a fixed family of three defined by its mechanism, this one is defined by its envelope, which changes with the design chosen. Maximum widths run from 2,000 mm on the narrowest designs through 2,100, 2,300 and 2,500 mm to 3,200 mm on the majority and 4,100 mm on the widest. Heights are 4,000 mm on most designs, 5,000 mm on the two built in the thinner series, and 6,000 mm on three of them — taller than anything else in the entry range. Two door series are built: a 105 series at 106 mm thick, hung on hinges, and a 95 series at 95 mm thick using an offset hinge. Because the envelope is design-dependent, the design has to be settled before the opening size is confirmed.

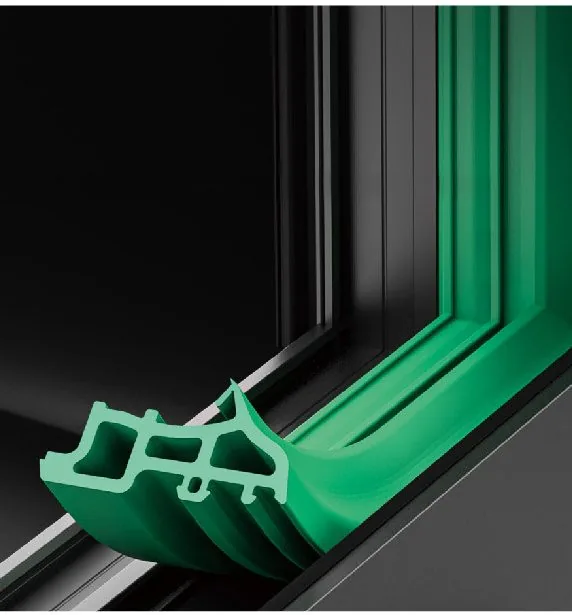

The construction is a thermally broken aluminium frame around a polyurethane foam-filled core, with the decorative surface applied as a separate outer skin over that core — which is why the pattern can change so completely between designs without changing the door's behaviour. Multiple weatherseal strips run around the leaf and frame, the profiles are imported extrusions, and the leaf is hung on a stainless steel high-precision hinge. Locking is a German G-U multi-point strip housed in the leaf edge.

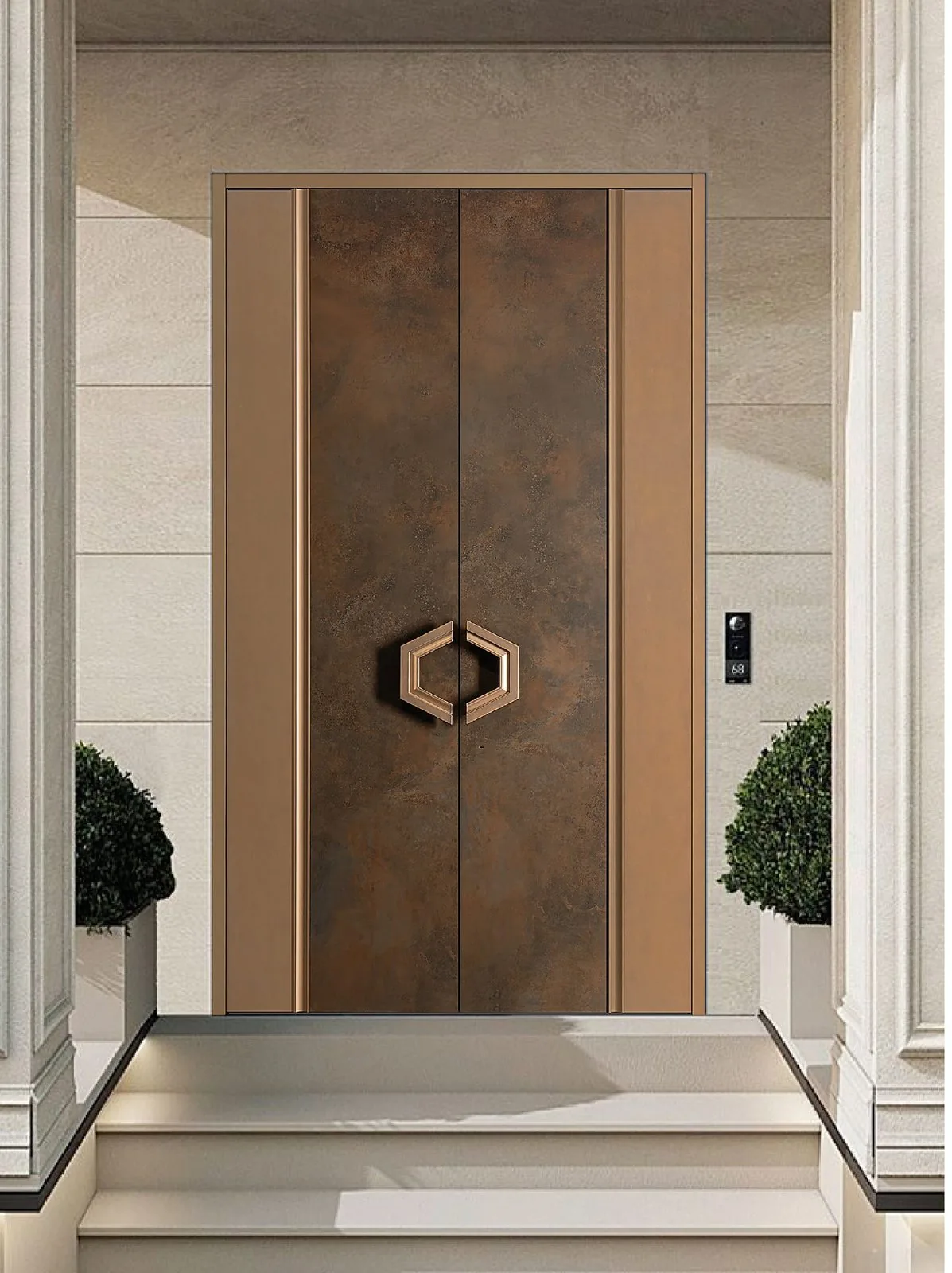

Exterior cladding and interior finish are specified separately, from ten exterior options spanning veined stone, terracotta, patinated copper and brass, travertine and woodgrains, and ten interior wood and finish options from blonde and white oak through grey and warm walnut. Handles are a range of ten, several of them integrated smart locks combining a full-height bar pull with a keypad, a fingerprint reader or a camera, and individual designs call out their own handle treatments — hexagonal ring pulls, mother-of-pearl knobs, Greek-key bronze work. Coverage is the standard ten-year NEXWD limited warranty on the frame, factory-installed hardware and screens, with a paid upgrade available that takes the glazing to twenty years and transfers to a subsequent owner.
| Product line | Signature |
|---|---|
| Material | Aluminum |
| Type | Entry Door |
| Max width | 51 3/16"–161 7/16" (1300–4100 mm), depending on design |
| Max height | 236 1/4" (6000 mm), depending on design |
| Lead Time | 9–10 weeks, fully door-to-door |
Specifications
| Material | Aluminum |
| Max width | 51 3/16"–161 7/16" (1300–4100 mm), depending on design |
| Max height | 236 1/4" (6000 mm), depending on design |
| Panel thickness | 4 3/16" (106 mm) · 3 3/8" (85 mm) |
| Hardware | 105 series armored door — hinged · 85 series glass door — hinged |
Frame profile & section
Values not listed are pending the manufacturer’s certified test report and are deliberately left blank rather than estimated.
Mounting and frame options
The frame type decides the rough-opening detail, the flashing and how much of the existing wall has to come out. Four are available; tell us the wall build-up and we will specify which one your opening needs.
The standard new-construction frame. The flange laps the sheathing so the unit sets and seals in one operation.
A 1 3/8" flange is available where the cladding build-up needs the extra reach.
Installs over an existing aluminum window frame, so the stucco exterior is left intact. No cutting back and repatching.
Available on selected window types — ask us which of your openings can take it before you price the stucco work.
For full removal, when the existing frame is rotten or damaged and has to come out entirely.
Sets into the existing rough opening, and arrives with the through-the-jamb holes pre-drilled and the screws supplied.
Straps fix to the frame, which lets the unit sit anywhere in the depth of the wall cavity rather than at a fixed setback.
Installs from the interior, and works for both new construction and replacement.
Full CAD details for any of these are available on request for your wall assembly.
Factory-joined combinations for large openings
Multi-unit combinations are joined in the factory and delivered as one assembly, so the joint is made under shop conditions instead of on a scaffold. The joining mullion is 1 1/8" (28 mm) wide and comes in three reinforcement grades, chosen by the height of the window it has to carry. The system is covered by a US patent.
| Suggested window height | Joint width |
|---|---|
| up to 9 ft | 1 1/8" (28 mm) |
| 9 to 11 ft | 1 1/8" (28 mm) |
| 11 to 13 ft | 1 1/8" (28 mm) |
Combinations arrive partly or fully assembled depending on size and shipping method. Tell us the opening and we will confirm which grade your height needs and how the unit will be split for transport, before you price the crane time.
How large combinations are joined →Installation details
Timber frame, masonry and board substrates, plus the splice joint used to ship large units in sections. Full CAD details on request.
Installation methods explained →Performance & Certifications
Values not listed are pending the manufacturer’s certified test report and are deliberately left blank rather than estimated.
Warranty
Our products are certified to:
Certificate numbers available on request.
VERIFIABLE NOW44 certified product linesListed in the public NFRC directory. Ask for the CPD number covering the system you are specifying and we will confirm it in writing.
Options
Finishes
Powder-coat finishes to the standard RAL card, plus anodized options. Wood interiors are available in several species and interior finishes.
Exterior finish
Finish options for this platform are confirmed at quotation. We have not published a colour chart for it because we do not hold documented availability, and a chart that turns out to be wrong at order stage is worse than a question.
Hardware
105 series armored door — hinged · 85 series glass door — hinged
Downloads
Drawings & documentation
CAD window and door schedules, BIM models, performance documentation and installation details are prepared per project for trade accounts.
Request documentation →From our projects
Read all reviews →Customer statements from installed projects, quoted unedited.
“That’s so user-friendly! Once when the hotel had a power outage, the doors automatically opened—how convenient and hassle-free!”
“These doors look great , I’m very impressed.”
“I feel that the quality of my life has improved. It’s very quiet and comfortable. I’m in a good mood after using it.”
“The view is broader and the room is brighter. The whole family loves it very much.”
You may also like
The warranty, in short
- 10 years, standard
- Included with every order. Covers the aluminum frame, factory-installed hardware and screens against defects in material and workmanship.
- 20 years, optional
- A paid upgrade extending cover to twenty years on insulated glass units and impact-rated laminated glazing. This one transfers to a subsequent owner, without proration.
- What you receive
- Replacement parts at no charge for a covered defect. Shipping on those parts, and all labor, removal and reinstallation, are the customer’s.
- What is excluded
- Improper installation or handling, ordinary weathering, accident or misuse, and severe weather. Glass broken by wind-borne debris is not covered where the glazing performed within its tested design pressure.
All NexWD Products Include Our Complete Standard Service Package.
- 9–10 weeks, fully door-to-door — production, customs, duties & delivery to your jobsite all included.
- Full North American certification support: NFRC, AAMA/WDMA/CSA 101 and Impact-line TAS documentation on request.
- Complimentary 10-year limited warranty; optional 20-year transferable glass coverage upgrade available.
- Free CAD/BIM technical files, drawn from our own production drawings — no account required.
- Zero extra charge for non-standard sizes and configurations.
- On-site technical support within 48 hours upon special service requests, across 39 states.
