Signature Lift & Slide
A lift & slide door on a concealed track, engineered so the running gear is hidden in the floor and head, in two hardware grades. Standard suits typical residential panel sizes; Heavy-duty adds reinforced interlocks and an upgraded carriage for panels beyond the standard size and weight range, with the same zero-step threshold either way. Handle down lifts the panel for near-frictionless travel; handle up drops it onto its seals. Roller assemblies are serviceable without removing the panel.
Configure your unit, then request a quote — we price it and reply, usually within one business day.
Every unit is made to the opening. Sizes confirmed at quotation.
Low-E1 / E2 / E3 coatings, laminated and tempered build-ups available. We recommend the coating for your climate zone.
Full RAL range on request; the twelve most-ordered colours are listed. Powder coat or anodised.
No surcharge for any of these European hardware brands.
No price is shown because every unit is made to order. You will get a written quote for exactly this configuration.
10-year warranty · 20-year transferable upgrade available
Questions before you order
Will these pass a Florida HVHZ inspection?
This model is not covered by a Miami-Dade Notice of Acceptance, and we do not present it as if it were. We hold active NOAs on hurricane-zone systems — casement, fixed, awning, sliding glass door and storefront — and will tell you which one fits your opening if your job is in HVHZ. We do not claim an impact rating on a product that has not been tested for one; that is exactly what fails an inspection.
Do I get stamped drawings and the approval number before I order?
Yes — with the quotation, not after the order. Shop drawings carry a Florida-licensed engineer of record’s seal, and if the system holds a NOA, the exact number covering your opening is issued in writing at that same point. A supplier who only produces drawings once you are committed has moved their risk onto your schedule; here the paperwork arrives before the decision, not after it.
What happens if a unit arrives wrong — who pays for the delay?
We do. If a unit does not match your approved drawings, or has a manufacturing defect, we replace or repair it at no cost to you — send the order number and photographs and we start it the same day. The honest constraint worth knowing: a replacement is manufactured and shipped like any other order, so the realistic timeline is production plus freight, not days. That is the strongest argument for ordering a small contingency on a large project.
Can you meet a 9-week schedule, or is that best-case?
It is the figure we confirm in writing before deposit, against a real production schedule — not a best-case number used to close the sale. 9–10 weeks door to door already includes production, ocean freight, customs and final delivery in one figure. That said: non-standard sizes, special finishes and large combinations do take longer in production, and we say so at quotation, not after you have already paid a deposit.
Who holds the warranty — you, or someone overseas?
We do. One company on the contract, one warranty, one point of contact — you deal with NEXWD from the quotation through to a claim years later, and there is no second party on the other side of the world for us to hand you off to. Ten years standard on frame, hardware and screens; an optional 20-year upgrade on glass, transferable without proration. Ask this question of every supplier you are comparing — the answer tells you more than any brochure.
Do you provide CAD/BIM for my submittal?
Yes, free, and at quotation — drawn from our own production drawings, not a generic template, and not gated behind an account or a minimum order. NFRC data, size-versus-pressure tables and section details are included.
Overview

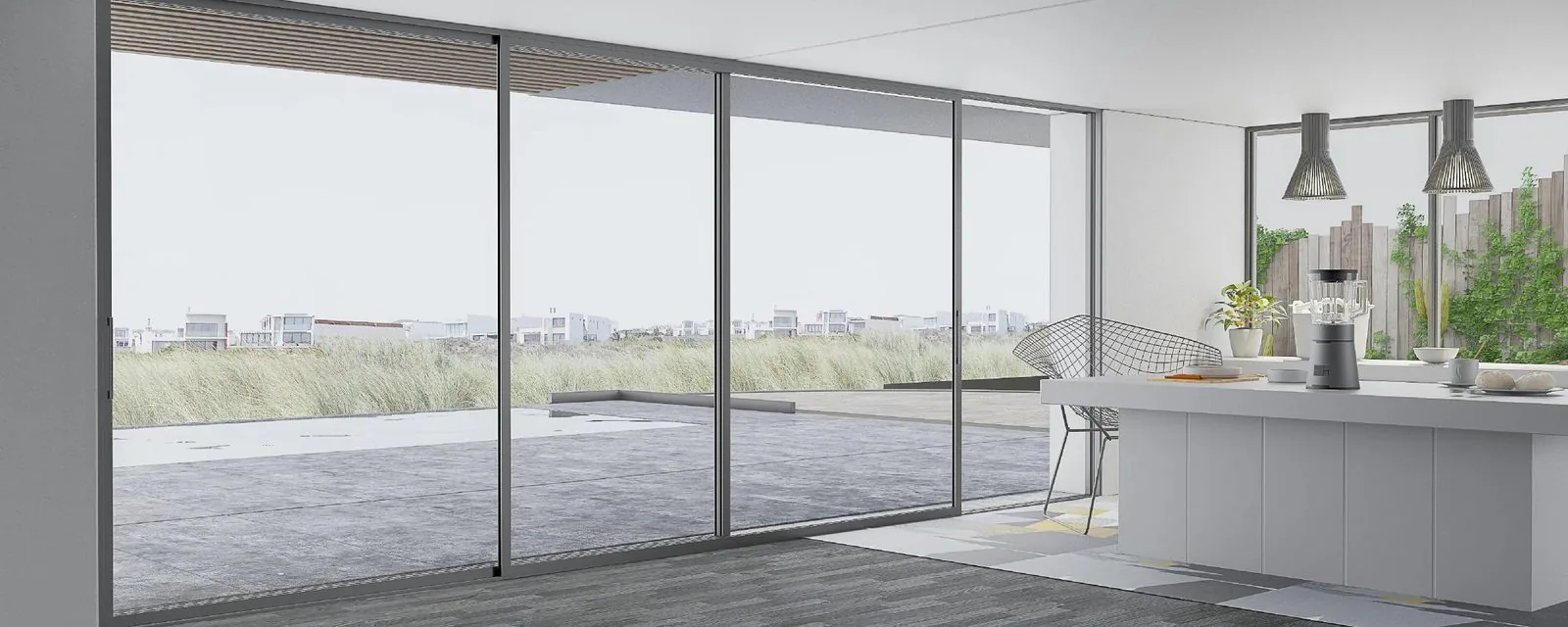

A lift-and-slide terrace door running on a concealed track, with the threshold set down into the floor so the opening is crossed level. Handle down lifts the leaf clear of its seals for near-frictionless travel; handle up drops it back onto them. Panel sizes run to 98 7/16" wide or 157 1/2" tall at 7 m2 and 771.62 lb, which is a domestic terrace or garden opening rather than a full glazed elevation.
It is the smallest of the three sliding platforms, and that is the choice it represents. The multi-slide is rated to 20 m2 and 3,306.93 lb and stacks or pockets across several tracks; the heavy-duty lift-slide takes the deepest glazing build-up and the best thermal figure in the range. This one gives up that capacity and buys the narrowest sightline instead: the leaf shows a maximum of 13/16", two centimetres of visible surface, which is where the number in its name comes from.

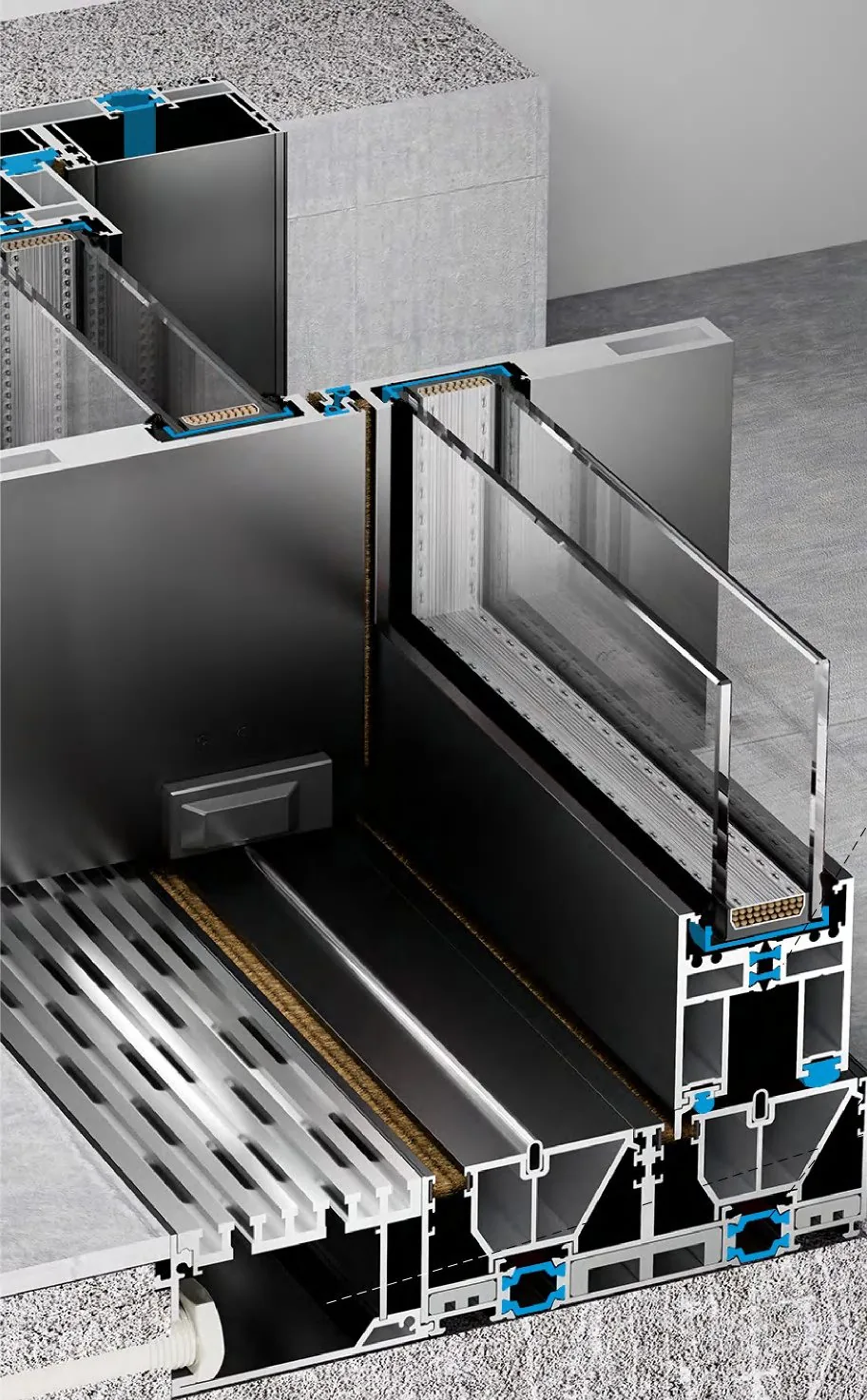

The frame is thermally broken aluminium with a section depth of 5 3/4" and an interior frame face of 2 1/16". Dual and multi-chamber thermal breaks form vertical isothermal barriers between sash and frame, and the two tracks are isolated from each other so water cannot cross from one channel to the next. All frame corners are sealed by twelve-point robotic polyurethane injection, and the drainage is fully concealed, in triple-tiered channels rated at 45 litres per minute per metre.
The lock points and lock seats were redeveloped so that neither protrudes from the frame or the leaf, which is what makes a door this size comfortable to use every day rather than only impressive to look at. Glazing is a 1 7/16" insulating unit on a warm-edge spacer, giving Uw 1.6 W/m2K, air infiltration of 0.5 m3/(m·h), wind resistance of 5.0 kPa and water tightness to 720 Pa, with acoustic performance up to 42 dB on the European weighting — a figure that is not an STC rating and should not be read as one. Panel layouts include two-panel with either leaf fixed, two-panel bi-parting, three-panel with a fixed centre, and four-panel with either the middle pair or all four sliding. Handle sets are offered by Siegenia in five finishes and MACO in two; the specification table lists no integrated screen for this platform.
| Product line | Signature |
|---|---|
| Material | Aluminum |
| Type | Door |
| Platform | 20 |
| Lead Time | 9–10 weeks, fully door-to-door |
Specifications
| Material | Aluminum |
| Platform | 20 |
| Hardware | Standard — Concealed track · Standard — Zero-step threshold, hidden in the floor · Standard — Roller replacement without removing the panel · Standard — ±1/8" height adjustment per roller unit · Heavy-duty — Heavy-duty lift and slide gear · Heavy-duty — Zero-step threshold, hidden in the floor · Heavy-duty — Advanced drainage for lift and slide |
The platform number is a nominal frame depth in millimetres — contact us for the exact measured section before you detail the opening.
Frame profile & section
Values not listed are pending the manufacturer’s certified test report and are deliberately left blank rather than estimated.
Mounting and frame options
The frame type decides the rough-opening detail, the flashing and how much of the existing wall has to come out. Four are available; tell us the wall build-up and we will specify which one your opening needs.
The standard new-construction frame. The flange laps the sheathing so the unit sets and seals in one operation.
A 1 3/8" flange is available where the cladding build-up needs the extra reach.
Installs over an existing aluminum window frame, so the stucco exterior is left intact. No cutting back and repatching.
Available on selected window types — ask us which of your openings can take it before you price the stucco work.
For full removal, when the existing frame is rotten or damaged and has to come out entirely.
Sets into the existing rough opening, and arrives with the through-the-jamb holes pre-drilled and the screws supplied.
Straps fix to the frame, which lets the unit sit anywhere in the depth of the wall cavity rather than at a fixed setback.
Installs from the interior, and works for both new construction and replacement.
Full CAD details for any of these are available on request for your wall assembly.
Factory-joined combinations for large openings
Multi-unit combinations are joined in the factory and delivered as one assembly, so the joint is made under shop conditions instead of on a scaffold. The joining mullion is 1 1/8" (28 mm) wide and comes in three reinforcement grades, chosen by the height of the window it has to carry. The system is covered by a US patent.
| Suggested window height | Joint width |
|---|---|
| up to 9 ft | 1 1/8" (28 mm) |
| 9 to 11 ft | 1 1/8" (28 mm) |
| 11 to 13 ft | 1 1/8" (28 mm) |
Combinations arrive partly or fully assembled depending on size and shipping method. Tell us the opening and we will confirm which grade your height needs and how the unit will be split for transport, before you price the crane time.
How large combinations are joined →Installation details
Timber frame, masonry and board substrates, plus the splice joint used to ship large units in sections. Full CAD details on request.
Installation methods explained →Performance & Certifications
Values not listed are pending the manufacturer’s certified test report and are deliberately left blank rather than estimated.
Warranty
Our products are certified to:
Certificate numbers available on request.
VERIFIABLE NOW44 certified product linesListed in the public NFRC directory. Ask for the CPD number covering the system you are specifying and we will confirm it in writing.
Options
Finishes
Powder-coat finishes to the standard RAL card, plus anodized options. Wood interiors are available in several species and interior finishes.
Glazing
- Double- or triple-pane insulated glass
- Low-E1 / Low-E2 / Low-E3 coatings
- Argon fill
- Tempered and laminated build-ups
- Custom interlayer colours and patterns
Pocket solution — panels disappear into the wall
On lift & slide systems the leaves can glide right into the wall cavity instead of stacking in view, so when the door is open nothing of it is visible and the whole opening is usable. Up to six vents, in duo-track, three-track or up to six-track compositions. It has to be planned with the wall rather than after it — the pocket is a structural decision, so raise it while the plan is still on paper.
Exterior finish
The exterior is extruded aluminum cladding, which is why the finish schedule matters more here than the colour chart on a vinyl window: it is a powder coat on structural extrusion, not a surface tint.
19 finishes are available in total, including three pearlescent. Twelve are named here; ask us for the rest, or for a custom colour match.
Swatches are indicative only — reproduced from print, shown on your screen. Specify by RAL number, and ask us for a physical sample before you commit an elevation to a colour.
Hardware
Standard — Concealed track · Standard — Zero-step threshold, hidden in the floor · Standard — Roller replacement without removing the panel · Standard — ±1/8" height adjustment per roller unit · Heavy-duty — Heavy-duty lift and slide gear · Heavy-duty — Zero-step threshold, hidden in the floor · Heavy-duty — Advanced drainage for lift and slide
Lead Time
- 9–10 weeks total, door-to-door: production, customs clearance, duties and delivery to your jobsite — nothing left for you to arrange separately.
- Ocean freight and drayage are booked and tracked on your order, not quoted as a separate step afterward.
- Shop drawings and a confirmed production schedule are provided before deposit, so the 9–10 weeks starts from a real date.
- Schedules are confirmed in writing at order. We build to your project timeline.
Downloads
Drawings & documentation
CAD window and door schedules, BIM models, performance documentation and installation details are prepared per project for trade accounts.
Request documentation →From our projects
Read all reviews →Customer statements from installed projects, quoted unedited.
“That’s so user-friendly! Once when the hotel had a power outage, the doors automatically opened—how convenient and hassle-free!”
“These doors look great , I’m very impressed.”
“I feel that the quality of my life has improved. It’s very quiet and comfortable. I’m in a good mood after using it.”
“The view is broader and the room is brighter. The whole family loves it very much.”
You may also like
The warranty, in short
- 10 years, standard
- Included with every order. Covers the aluminum frame, factory-installed hardware and screens against defects in material and workmanship.
- 20 years, optional
- A paid upgrade extending cover to twenty years on insulated glass units and impact-rated laminated glazing. This one transfers to a subsequent owner, without proration.
- What you receive
- Replacement parts at no charge for a covered defect. Shipping on those parts, and all labor, removal and reinstallation, are the customer’s.
- What is excluded
- Improper installation or handling, ordinary weathering, accident or misuse, and severe weather. Glass broken by wind-borne debris is not covered where the glazing performed within its tested design pressure.
All NexWD Products Include Our Complete Standard Service Package.
- 9–10 weeks, fully door-to-door — production, customs, duties & delivery to your jobsite all included.
- Full North American certification support: NFRC, AAMA/WDMA/CSA 101 and Impact-line TAS documentation on request.
- Complimentary 10-year limited warranty; optional 20-year transferable glass coverage upgrade available.
- Free CAD/BIM technical files, drawn from our own production drawings — no account required.
- Zero extra charge for non-standard sizes and configurations.
- On-site technical support within 48 hours upon special service requests, across 39 states.
